If you work with modern multi-brand diagnostic tools, you already know the golden rule of mobile scan tools: never plug a standard 12V passenger vehicle scanner directly into a 24V heavy-duty commercial truck.

Doing so is an instant, expensive mistake that will fry the internal transceivers, voltage regulators, and multiplexers of your diagnostic dongle. Whether you are running a Thinkdiag 2, a Launch X431 DBScar, or a Golo box, their internal architecture is strictly rated for 12V systems.

The GODIAG GT106 PLUS changes the game entirely. Acting as an active inline power and protocol translation buffer, it lets you safely use your existing 12V Bluetooth hardware on 24V heavy trucks, semi-trailers, light commercial vehicles, and pickups.

Active Dual-Layer Hardware Protection

Unlike basic passive pin-mapping adapters that merely route wires to different spots, the GT106 PLUS features internal active circuitry designed to safe-keep your master diagnostic setups.

1. Active Voltage Drop (24V to 12.5V)

The adapter monitors the incoming raw 24V voltage from the commercial truck's OBD interface and steps it down to a heavily regulated 12.5V output. Why 12.5V instead of a flat 12V? This precise target voltage mimics a standard passenger vehicle in a running or stable starting state. This ensures your diagnostic mobile apps cleanly recognize the vehicle's ignition status without dropping connection protocols.

2. Crucial 7-Pin K-Line Signal Translation

dropping the raw battery power line voltage is only half the battle. Many commercial truck lines communicate via high-voltage data protocols. A generic adapter leaves the data lines screaming at 24V, which instantly blows out the communication chip inside your scanner. The GT106 PLUS actively converts the truck’s 24V K-Line protocol signals down to a safe 12V K-Line standard, preserving the delicate 7-pin data hardware on your scanner head.

The "PLUS" Edge: Standalone Workbench Utilities

What sets the upgraded PLUS variant apart from the original classic GT106 model is its ability to detach from the truck entirely and serve as a standalone diagnostic bench workstation. By supplying an external DC power source (higher than 13V), you unlock deep component verification:

1. Integrated 12V Relay Testing

When a commercial asset shows up with dead headlights, a silent horn, or zero starter engagement, diagnostic software can only tell you so much.

• The Bench Test: Pop the suspect relay out of the fuse panel, connect it to the GT106 PLUS via the included test clips, and link it to the IR TEST OUT port. The adapter cycles the internal coil, enabling you to check for sticky mechanical switches or high internal resistance without digging through wiring harnesses.

2. Fuel Injector Pulse Testing & Flushing

Stuck, leaking, or dirty fuel injectors cause immediate rough idling, cylinder misfires, and high fuel consumption. The GT106 PLUS functions as a standalone electronic pulse wave generator.

• Mechanical Verification: It sends automated drive pulses to open and close the injector coil, allowing you to visually verify the valve's mechanical response.

• Bench Cleaning: By snapping the injector onto a basic fluid canister cleaner line, you can repeatedly pulse the valve open to flush out heavy carbon buildup and gummy fuel deposits directly on your workbench.

⚠️ Technical Bench Note: When running tests or cleaning cycles on high-resistance heavy truck injectors, ensure you utilize a robust 24V 8A power supply feed. To prevent localized thermal damage to the injector's delicate internal solenoid coils, limit individual bench test run cycles to under 120 seconds.

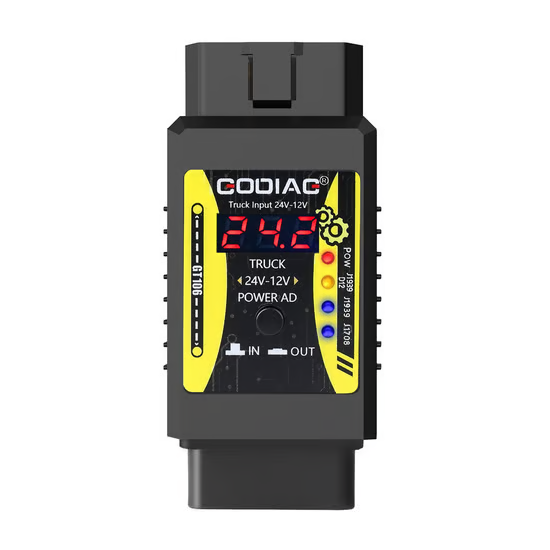

Interface Architecture & Monitoring Layout

The device features an interactive front panel that gives you real-time visibility into the vehicle's network health before you risk plugging in your diagnostic tools:

Control / Display ElementFunctional PurposePhysical Toggle Switch

Popped Up: Displays incoming raw truck battery voltage (24V).

Pressed Down: Displays converted output voltage (12.5V) for tool verification.

Digital LED Display ScreenProvides precise numerical status monitoring of live voltage inputs and outputs.Active Protocol LEDsDedicated status indicators for CANH/J1939 (Pin 6), J1708 (Pin 12), and K-Line (Pin 7) that flash in real-time as data packets transfer.DC Power Port (POW IN)Accepts external desk power inputs for standalone bench cleaning and testing.

Comprehensive Scanner Compatibility Feature

The GT106 PLUS is highly universal, functioning as an essential bridge for technicians running alternative or custom diagnostic server software (Diagzone, X-Pro5, FullFix) who need to pull heavy commercial vehicle logic with a standard passenger vehicle interface:

• Launch X431 Eco-System: EasyDiag 2.0/3.0, DBScar II, Diagun, Golo Technician boxes.

• Thinkcar Eco-System: Thinkdiag, Thinkdiag 2, Thinkcar Pro, Thinkdriver.

Final Verdict

The GODIAG GT106 PLUS is a highly efficient accessory that prevents costly tool damage. By keeping a single, affordable adapter in your toolbox, you expand the structural limits of your standard 12V Bluetooth diagnostic dongles into the heavy fleet sector—saving you from purchasing a completely separate, dedicated truck diagnostic platform.
